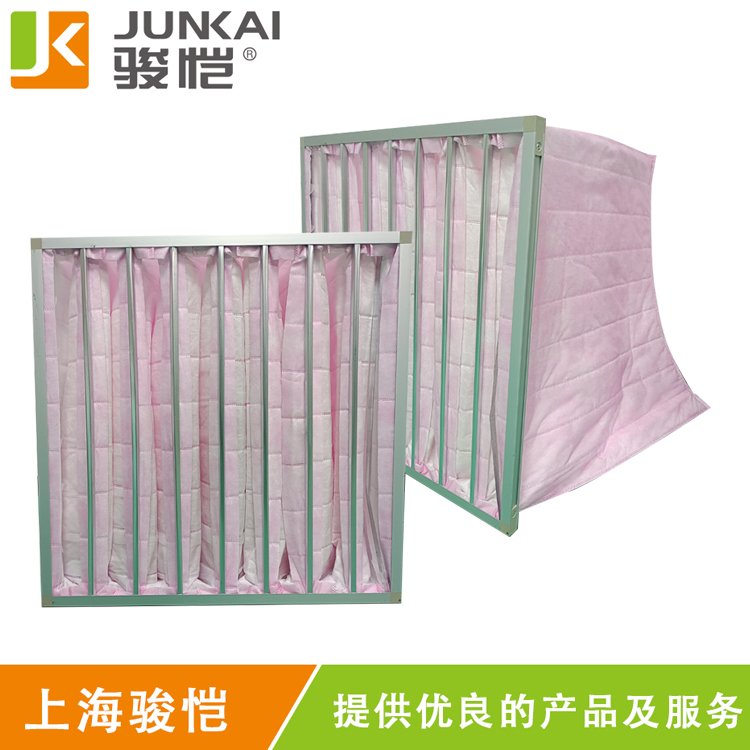

Medium efficiency bag filter adopts pink F7 filter material with high capacity. It can be used as the filter of HEPA's front protective section, and is widely used. The outer frame ca
Mobile
+8615901736546
Tel.
+86 400 698 0996
Outer frame: galvanized frame, aluminum frame, stainless steel. Thickness: 21mm, 25mm, 46mm
Filter material: F7 pink filter material

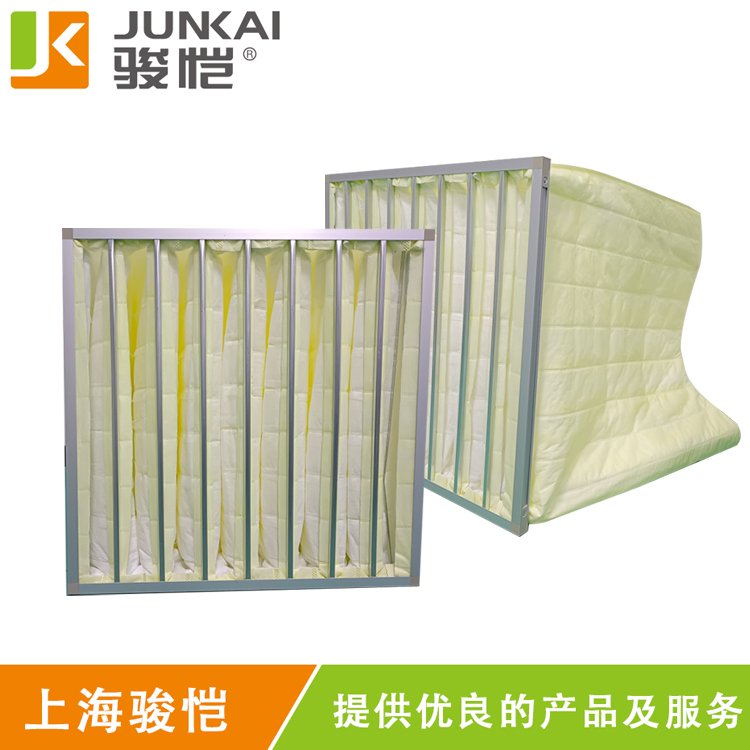

Efficiency: F5(orange),F6(green),F7(pink),F8(yellow),F9(white)
Flame retardant grade: DIN 53438 F1
Application:
Used in air purification systems for electronic, mechanical instruments, petrochemical and light industries
As the filter of the front protective section of HEPA
Common specifications
Model WxHxD | Dimensions WxHxD(mm) | Pocket piece | Media Area (m²) | Rated Air Flow (m³/h) | Initial Pressure Drop(pa) G3 G4 F5 F6 F7 F8 F9 | Final Pressure Drop(pa) G3~F8 F9 |
JMB7-24X24X25 | 592X592X635 | 8 | 3.3 | 3400 | 37 45 55 58 90 95 155 |
250 310 |
JMB7-20X24X25 | 490X592X635 | 6 | 2.47 | 2850 | 37 45 55 58 90 95 155 | |
JMB7-20X20X25 | 490X490X635 | 5 | 1.75 | 2300 | 38 47 55 58 90 95 155 | |
JMB7-12X24X25 | 287X592X635 | 4 | 1.65 | 1700 | 38 48 55 58 90 95 155 | |
JMB7-24X24X22 | 592X592X550 | 8 | 2.84 | 3400 | 40 49 60 65 105 110 165 |
250 330 |
JMB7-20X24X22 | 490X592X550 | 6 | 2.13 | 2850 | 40 49 60 65 105 110 165 | |
JMB7-20X20X22 | 490X490X550 | 5 | 1.51 | 2300 | 42 50 60 65 105 110 165 | |
JMB7-12X24X22 | 287X592X550 | 4 | 1.42 | 1700 | 42 50 60 65 105 110 165 | |
JMB7-24X24X15 | 592X592X381 | 8 | 1.93 | 3400 | 45 58 70 75 125 130 200 |
250 400 |
JMB7-20X24X15 | 490X592X381 | 6 | 1.45 | 2850 | 46 60 70 75 125 130 200 | |
JMB7-20X20X15 | 490X490X381 | 5 | 1.03 | 2300 | 46 60 70 75 125 130 200 | |
JMB7-12X24X15 | 287X592X381 | 4 | 0.97 | 1700 | 46 60 70 75 125 130 200 |
Shanghai Junkai Environmental Engineering Co., Ltd., founded in 2007, is a comprehensive high-tech company. Primary filter, HEPA filters, activated carbon filters, HEPA air purifier filter developed and produced by Junkai have been widely used in the field of air purification in domestic fresh air fans, purifiers, residential buildings and other living scenes.The industrial primary filter, medium filter, high efficiency filter and chemical filter produced by Junkai have been used in many industrial fields such as automobile manufacturing, industrial coating equipment, electronics, pharmacy, photovoltaic, food hygiene, scientific research institutes, etc.
