采用阻燃合成纤维滤料,出风面覆金属网支持,强度好,纸外框,防水卡纸外框,实用性强,经济实惠,用于空调通风系统初效过滤。

Please choose the consultation method

  • Mobile

    15901736546

  • Tel.

    400 698 0996

  • Message

Details Message

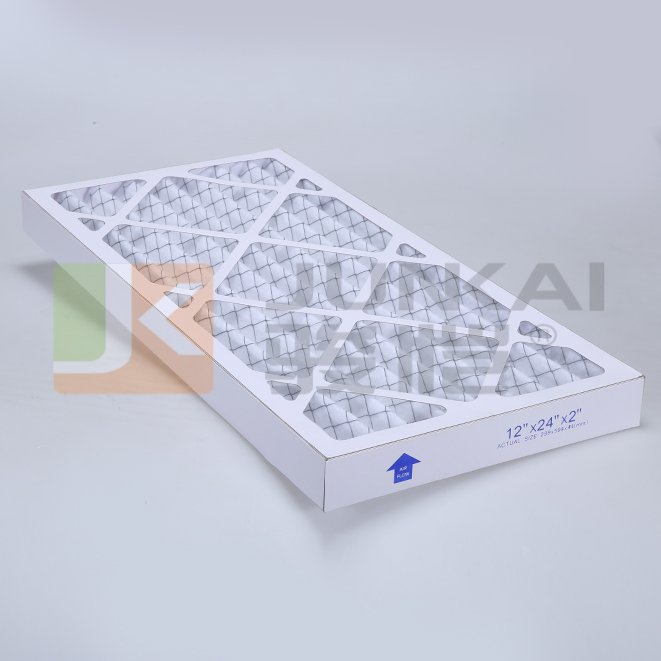

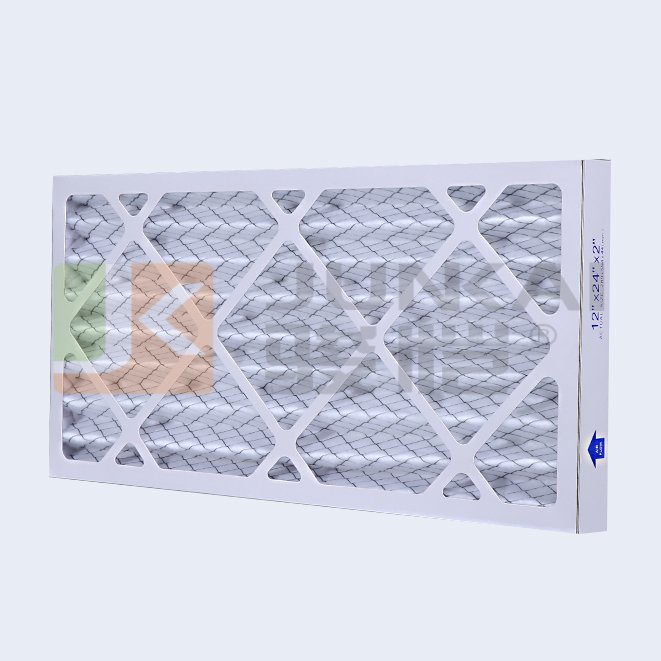

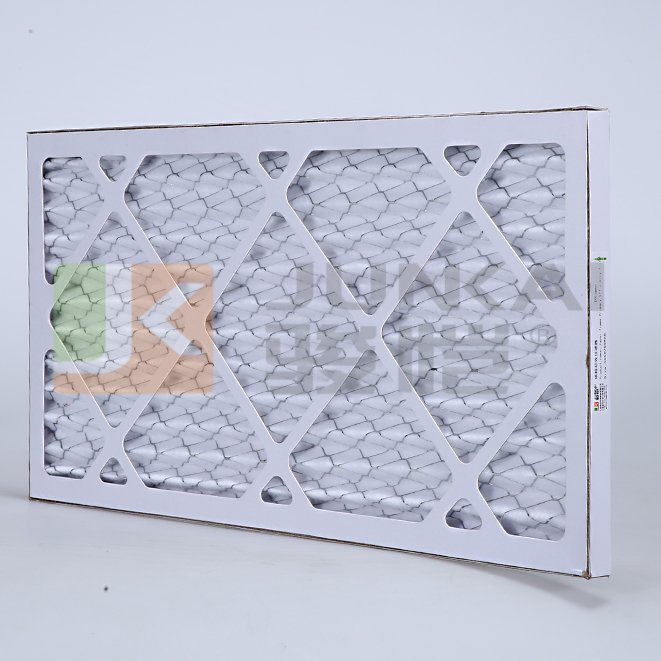

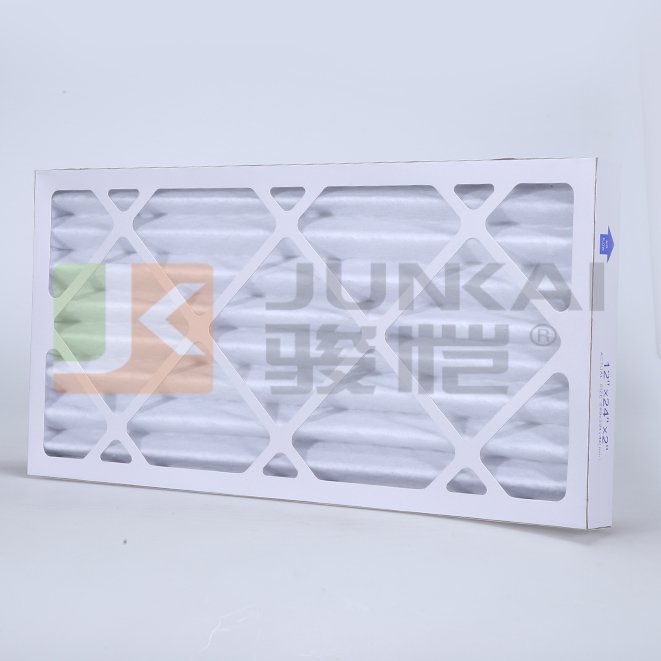

JPF G4 纸框初效过滤器

滤料:阻燃合成纤维

外框:防水卡纸

尺寸(mm):300*600*50(可定制)

效率: (EN779:2002) G4
            (ASHRAE 52.2:2007) MERV8


备注:

若遇规格、结构、性能变更,以本公司提供的新数据为准

公司接受非标准规格定货

In case of changes in specifications, structure and performance, the latest data provided by our company shall prevail

The company accepts orders of non-standard specifications

常用规格


型号

Model



尺寸

Dimensions

W x H x D(mm)



额定风量

Rated Air Flow

(m³/h)



初期压损

Initial pressure drop

(Pa)


JPF-24*24*2
595*595*45
3175
135
JPF-12*24*2
290*595*45
1500
135
JPF-20*24*2
493*59545
3000
135
JPF-20*20*2
493*493*45
3000
135
JPF-12*20*2
290*493*45
1400
135
JPF-20*20*2
493*493*45
3000
135
JPF-12*20*2
290*493*45
1400
135
JPF-20*24*4
493*595*95
3000
100
JPF-20*20*4
493*493*95
1400
100
JPF-12*20*4
290*493*95
3000
100
JPF-24*24*4
595*595*95
1400
100
JPF-12*24*4
290*595*95
3000
100
